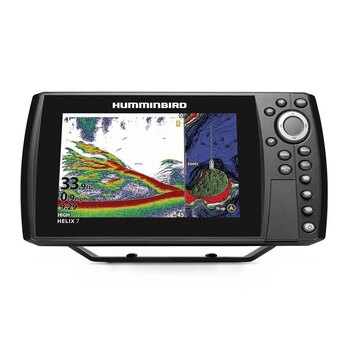

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N

  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
  • Humminbird HELIX 7 CHIRP MEGA DI GPS G4N
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The HELIX 7 CHIRP MEGA DI GPS G4N fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.
Specifications
Model
HELIX 7 CHIRP MEGA DI GPS G4N
Year
2023
Sale Type
New
Manufacturer
Humminbird
UPC
82324056239
Series
HELIX
Features
MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, Wi-Fi, MEGA Imaging
Warranty
One-Year Warranty
Power Draw
800 mA
Depth-Sonar
3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
Power Input
10.8-20 VDC
Product Code
411640-1
Mount-Optional
In-Dash Mounting Kit
Sonar-Coverage
20°, 42° & 60° @ -10dB
Sonar-Optional
53 kHz, 50/Low Airmar CHIRP
Sonar-Standard
Dual Spectrum CHIRP
Compatible With
Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, MEGA Live, AIS, NMEA 2000, Radar, AutoPilot, One-Boat Network
Memory Card Slot
Dual Micro SD
Power Output RMS
500 Watts
Depth-Down Imaging
75 ft (MEGA), 400 ft (455 kHz)
Mount-Optional Size
10.54" W x 5.44" H x 1.13" D
Mount-Standard Size
10.54" W x 5.8" H x 3.68" D
Transducer Included
XNT 9 HW MDI 75 T
Display Pixel Matrix
1024H x 600V
Display Size - Diagonal
7"
Power Output Peak-to-Peak
4000 Watts
Sonar-Frequencies Supported
50/83/200/455/800 kHz & 1.2 MHz
CHIRP - Frequencies Supported
Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Waypoints, Routes, Tracks/Points
2,750, 47, 50/20,000
Range-Side Imaging (Side-To-Side)
800 ft (455 kHz)
CHIRP - Imaging Frequencies Supported
455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz)
features

  • Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

  • MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.

  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

  • Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

  • One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

  • Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.

  • NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

  • Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.

  • 1-Year Limited Warranty
resources
Name Link
HELIX 5 & 7 G2 Installation Instructions Download
