R & J Machine Dock Ramps

  • R & J Machine Dock Ramps
  • R & J Machine Dock Ramps
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

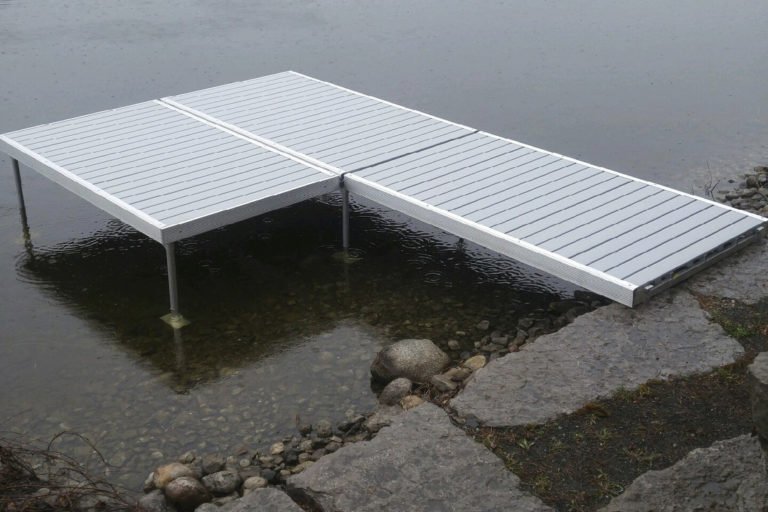

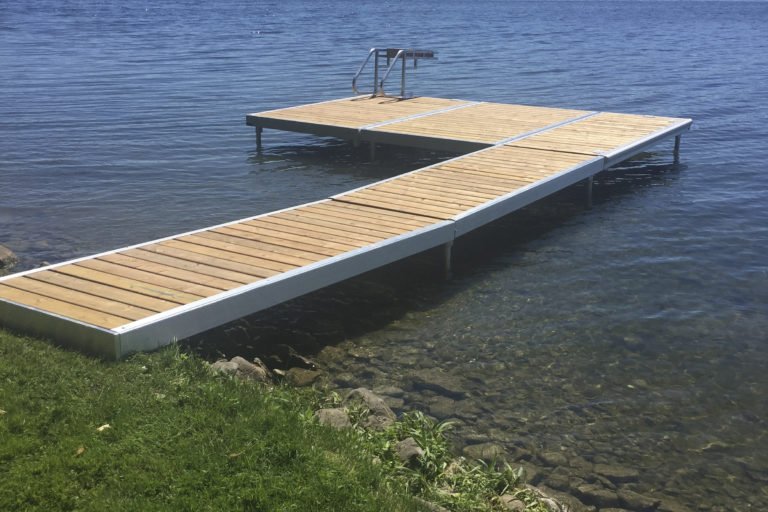

Our Aluminum framed ramps work as the perfect transition piece going from your shoreline to your main Pipe Dock, or from one dock to another. The ramps can be connect to our shoreline plate, another dock section, or you can leave it resting on top of the shore. Our ramps are composed of Aluminum framework, Stainless Steel hardware, hold down trim strips and  decking options to match your dock.  The decking is made in 2′ panels, just as our dock systems, and is held down by our custom extrusion  aluminum trim strips and stainless steel hardware. As shown below we have different variations of ramps to support our different docking systems. These ramps are available in various widths and lengths.
Specifications
Model
Dock Ramps
Category Name
Docks
Year
2024
Sale Type
New
Manufacturer
R & J Machine
features

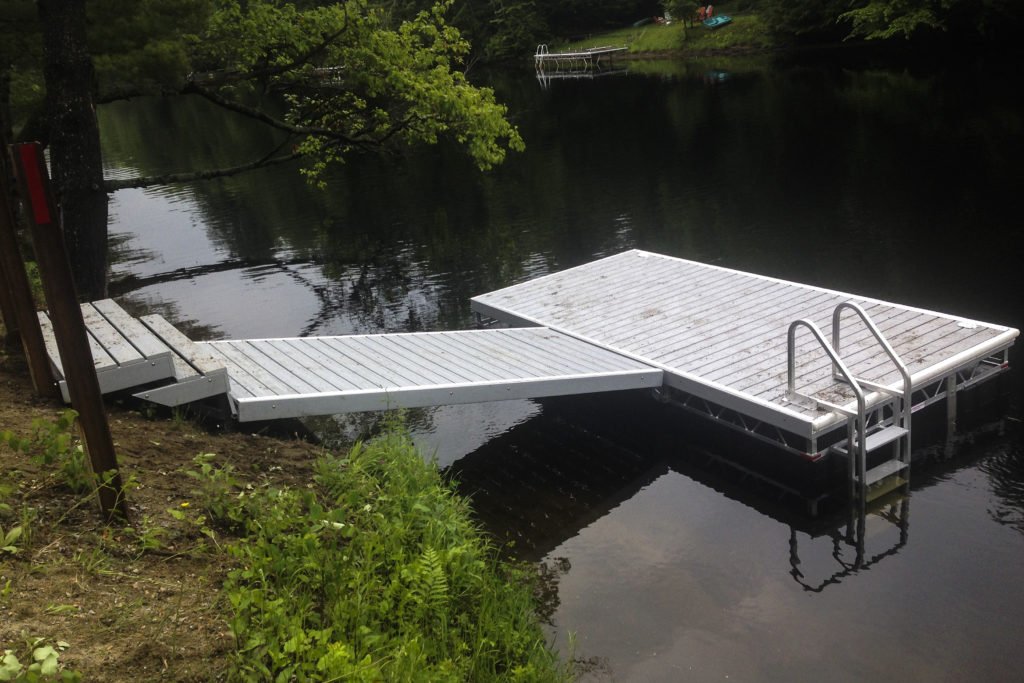

R & J Machine Dock Ramps6′ X 12′ Ramp connected to a Custom Shore base, attached to a 6′ x 18′ Floating Dock. Ramp and Dock and Custom Base Plate decked in Grey Veka PVC Decking.

R & J Machine Dock Ramps R & J Machine Dock Ramps Tapered Ramps

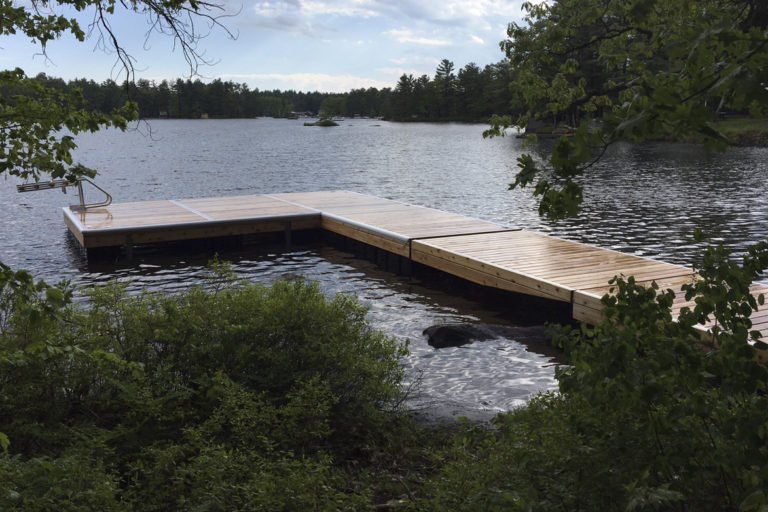

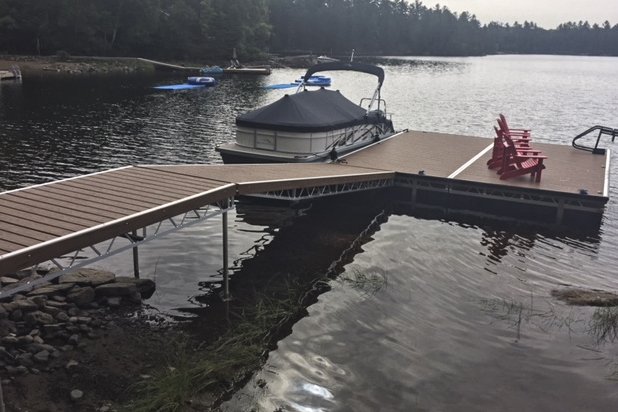

Our Tapered Ramps are constructed using aluminum truss framework the same as our Floating Dock Systems. This provides more strength and stability when connected to a floating dock system as a floating dock will face greater degrees of pressure and movement inflicted by water levels and weather. One end of the Tapered Ramp will be connected to the shore and will have a taper to the framework to accommodate a greater degree of flexibility for greater water level fluctuations.  The end connected to the dock will have a foam filled billet installed to give the floating dock system additional support as well as allows the end of the ramp to float on the water while you attach the floating dock. This makes for easier installations and removals for the changing seasons. These ramps are also available in various widths and lengths.

R & J Machine Dock Ramps R & J Machine Dock Ramps Lift-Up Tapered Ramps

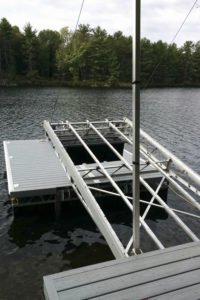

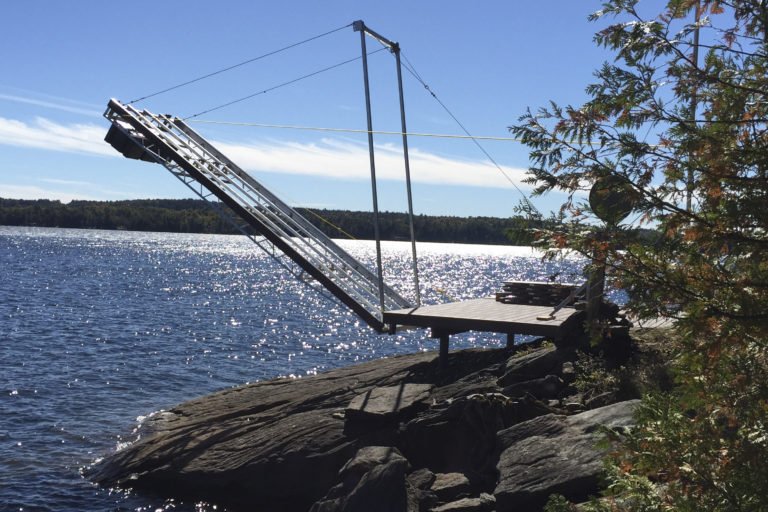

We can also make out Tapered Ramps into a Lift-Up version by including some additional bracing and gantry in the framework.  The additional bracing provides the ramp more strength when the unit is lifted by the gantry.  The gantry will fold down into the ramp and be covered by the decking panels for the summer and then makes for easy lifting in the fall. Once you detach the floating dock portion of the system you then remove the decking panels and this will expose the gantry.  Attach the cables to the end of the ramp and to the winch, then winch the tapered ramp up for the winter.

R & J Machine Dock Ramps R & J Machine Dock Ramps Wavex Dock Ramp

As described on our Wavex Modular Docks page, these units are designed for our mid-weight, low profile dock system.  Manufactured with an aluminum framework and stainless steel hardware, these ramps weigh in the range of 90 – 135lbs depending on the width of the ramp.
They come in standard 10′ lengths and varying widths of 4′, 6′ or 8′.
