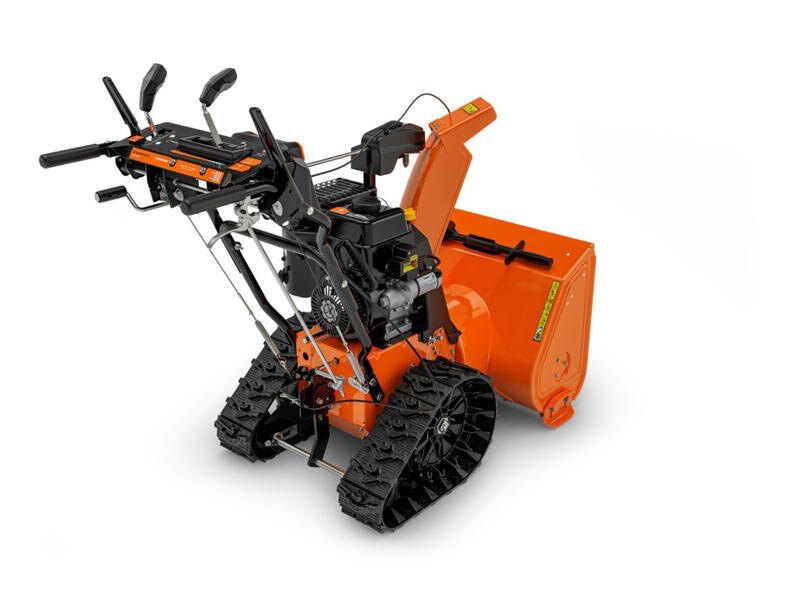

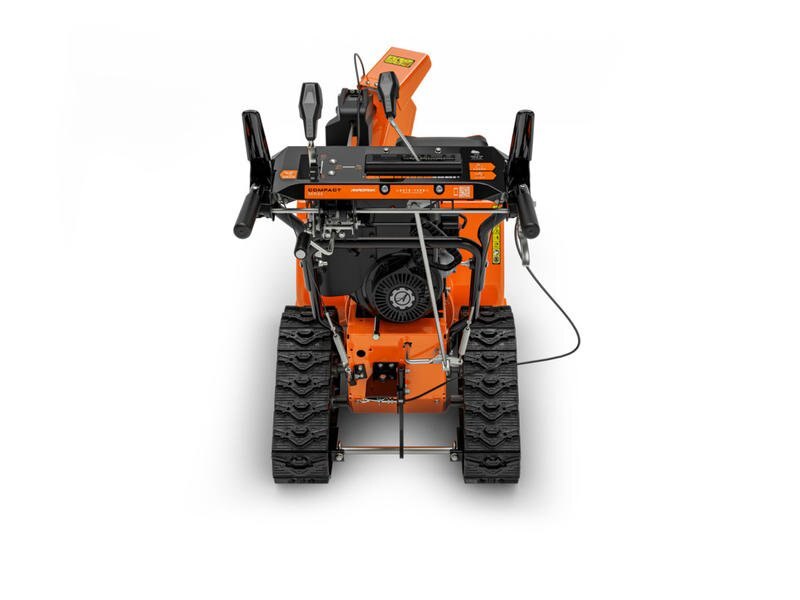

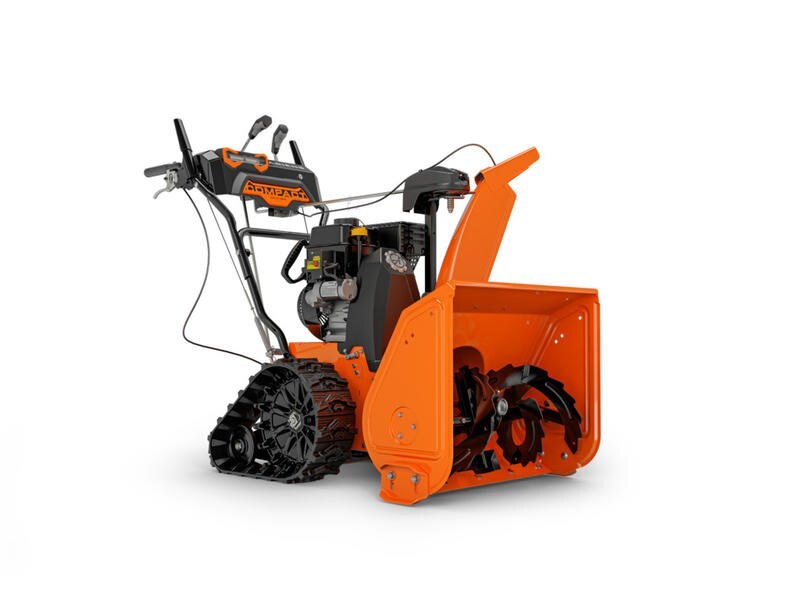

Ariens - COMPACT 24 RAPID TRAK

Ariens - COMPACT 24 RAPID TRAK

Don’t let its size fool you, there’s a lot of power packed into every Ariens® Compact. It was designed to be easy enough to take out for a light dusting of snow and reliable enough to tackle up to 59 tons per hour. The Compact Series is designed for eff ortless agility without sacrifi cing legendary Ariens power.

Features:

Ariens AX 223CC engine with electric start

Strong cast-iron gear case

Ariens exclusive Rapidtrak^™ technology​ is capable of tackling any terrain

Power Train

Engine - Ariens AX^®

Engine Displacement (in/cc) - 223 cc

Starting System - 120v / Electric

Steering - Auto-Turn

Drive Type - Disc-O-matic

Speeds - 6 Forward/2 Reverse

Tire Type - Directional Snow Track

Clearing Specs

Clearing Width (in/cm) - 24 In / 61cm

Housing Height - 20 In / 50.8cm

Throwing Distance - 3 ft - 40 ft

Chute Rotation - 2.5x Quick Turn

Chute Turning Radius - 205

Deflector Control - In-Dash Lever

Stage Type - Two Stage

Auger Diameter - 11 In / 27.9cm

Auger Type - Steel Serrated

Impeller Profile - Steel 3 Blade

Impeller Diameter - 12 In / 30.5cm

Skid Shoes - Steel Reversible

Scraper Bar - Steel Adjustable

Gear Case - Cast Iron

Dimensions

Length - 53.3 In / 135.4cm

Width - 26.4 In / 67.1cm

Height - 44 In / 111.8cm

Weight (assembled) - 220 lb

Warranties

Product Warranty - 3 years residential use. 90 days commercial use

Gear Case Warranty - 5 Year Consumer, 1 Year Commercial

Features at a Glance

Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional

Track Drive: Standard
One Hand Interlock: Standard
